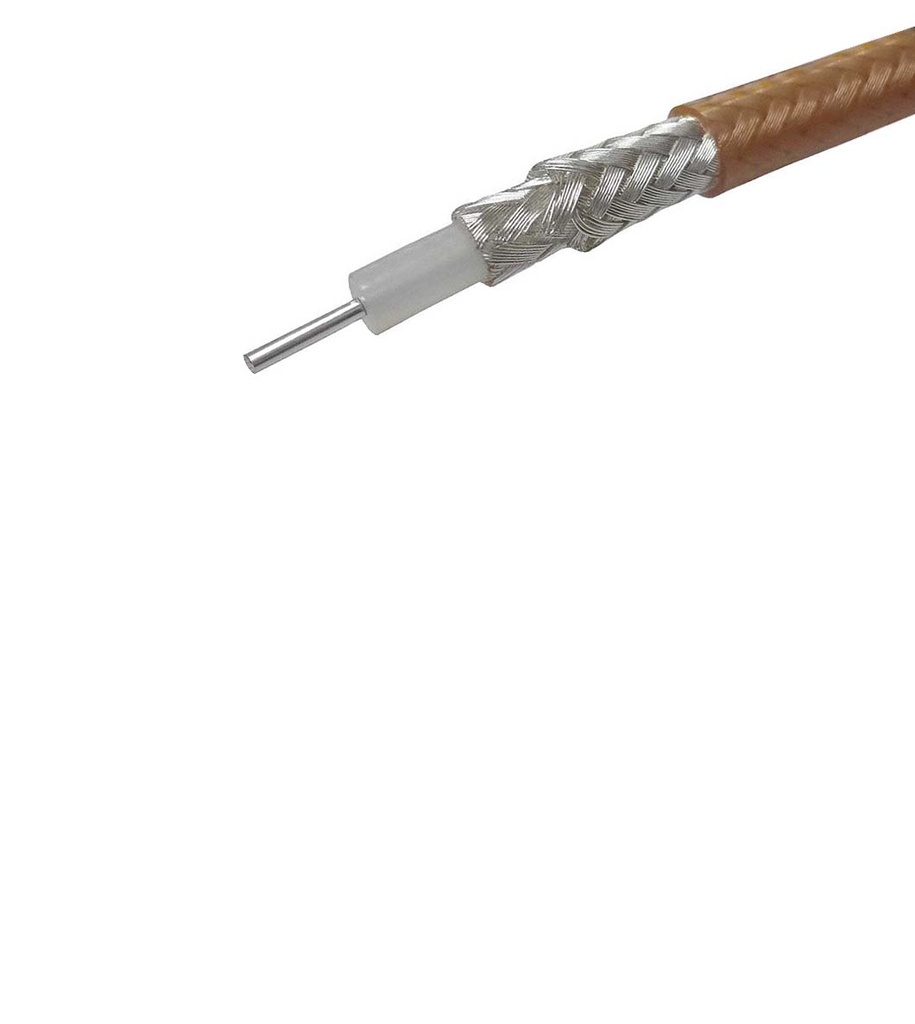

A Teflon-insulated coaxial cable for applications requiring high heat resistance.
Ideally suited for use in baluns. We use this coaxial cable in our 2kW and 3kW baluns.
The dimensions are similar to the well known RG-58.
(High quality, not “eBay junk”)
Technical Specifications:
Impedance: 50 Ohms
Conductor: Steel wire, copper-plated, silver-plated, Ø = 0.94
Dielectric: Ø 2.95 mm PTFE (Teflon) ±0.1
Cable jacket: FEP (PTFE), Ø 4.95 mm (+/- 0.1 mm)
Fabric shielding: 2x shielded with silver-plated copper wire mesh, Ø 0.127 mm.
Bend radius (outer/inner): 25 mm
Capacitance: 95 pF/m
Shortening factor: 0.7
Weight per meter: 83 g
Temperature range: -55° to 205° C
UV-resistant and weatherproof.
