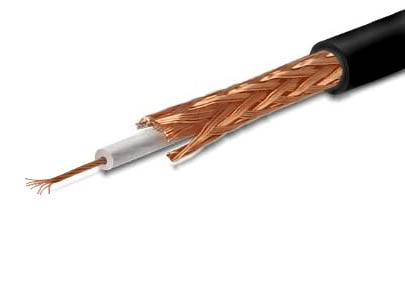

RG174-U coax cabel
UL006
Weight:
0.00
kg
Thin and lightweight COAX, not Teflon insulated.
Stronger KOAX is recommended for a line longer than 1m.
An ultra-lightweight thin, very flexible 50 Ohm coax, ideal for SOTA and other portable operation where lightweight equipment is required.
We use this cable with our Aerial-51 model 404-UL OCFD antenna.
Specifications:
IImpedance: 50Ohm
Inner Conductor: 7x 0.16 mm bare copper strands, Ø 0.48mm
Dielectric: Polyethylene (PE), 1.5 mm diameter
Jacket: UV-resistant (RoHS) black PVC, Ø 2.8mm
Shield: tinned copper-mesh wire, 86% coverage
Minimum Bend Radius: 20 mm
Capacitance: 101 pF/m
Velocity Factor: 0.66
Weight/meter: 4g
Temperature Range: -40° to 60° C
