Spiderbeam 20-17-15-12-10m Yagi kit (portable)

    384.87 € net price (outside EU) 384.87 EUR

    458.00 € inc. German VAT plus shipping

    384.87 €

    This combination does not exist.

    Add to Cart

    A00004

    Weight: 8.74 kg

    5-band antenna kitdurable lightweight yagi for portable operation


    Bands: 20m / 17m / 15m / 12m / 10m
    Nr. of Elements: 3 / 2 / 3 / 2/ 4
    Forward Gain at 10m height [dBi]: 11.7 / 10.5 / 12.3 / 10.5 / 12.6
    Front/Back ratio [dB]: 15-20 / 20-25 / 20-25 / 10-12 / 18-22
    SWR: < 1.5 / < 1.5 / < 2 / < 1.5 / < 2
    Max. Power: 2000 W / balun is included
    Impedance: 50 Ohms / single feedline
    Boom length: 10m (33 ft)
    Turning Radius: 5m (16 ft)
    Wind load area: 0.35 sq-m (3.8 sq-ft)
    Weight: 7.5kg (16 lbs)
    Transport Size: 120x27x18cm (47x11x7 inch)

    The portable Spiderbeam is a DXpeditioner's dream antenna. It is a fullsize 5-band yagi, consisting of 5 interlaced monobanders, in a lightweight and durable construction made of fiberglass and wire. All parts are made of high quality materials resistant to weather, UV rays and corrosion.

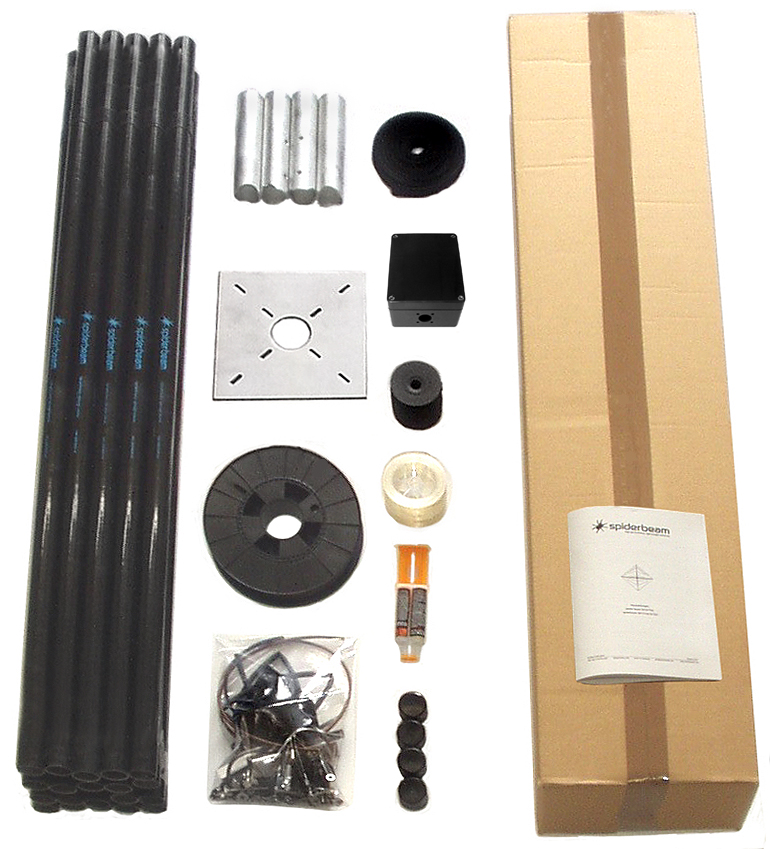

    Putting together this antenna kit will be a fun and educational project. It contains all the necessary parts to make a 100% complete antenna (exactly as described in the construction guide - including some prefabricated parts). Nothing beats the satisfaction of cracking pile-ups with an antenna you built with your own hands!

    Welcome aboard. Over 1000 Spiderbeams are already installed worldwide.
    Get yours today and become a happy Spiderbeam fan!

    Further informations to be found here: Documents, Tips and Construction Guides
