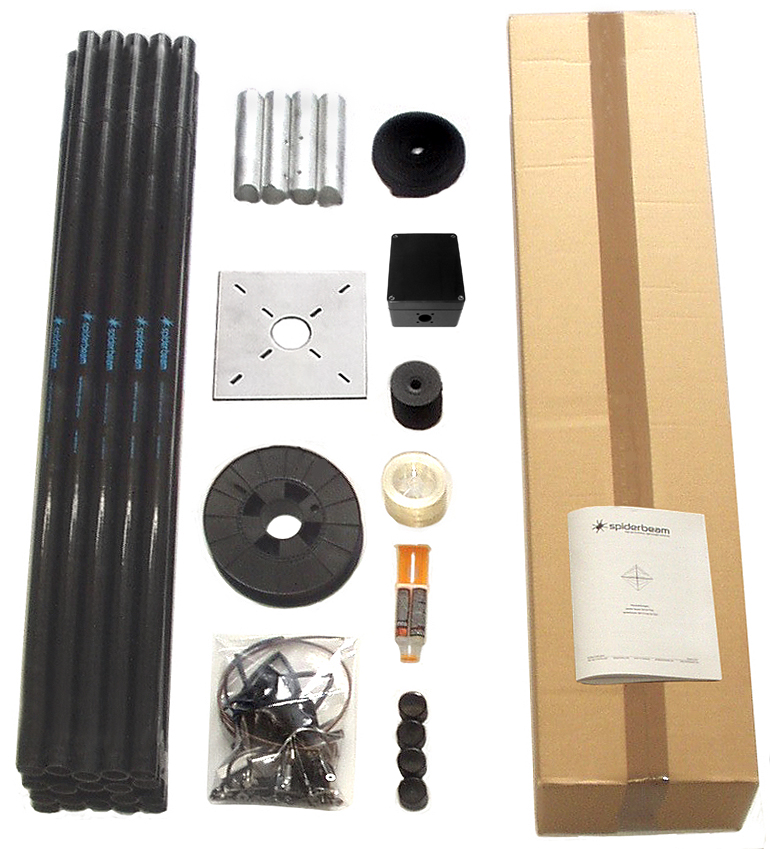

Spiderbeam 20-15-10m Yagi kit (portable)

Bands: 20m / 15m / 10m
Nr. of Elements: 3 / 3 / 4
Forward Gain at 10m height [dBi]: 11.7 / 12.3 / 12.6
Front/Back ratio [dB]: 15-20 / 20-25 / 20-25
SWR: < 1.5 / < 1.5 / < 2
Max. Power: 2000 W / balun is included
Impedance: 50 Ohms / single feedline
Boom length: 10m (33 ft)
Turning Radius: 5m (16 ft)
Wind load area: 0.35 sq-m (3.8 sq-ft)
Weight: 6.7kg (14 lbs)
Transport Size: 120x27x18cm (47x11x7 inch)

The portable Spiderbeam is a DXpeditioner's dream antenna. It is a fullsize 3-band yagi, consisting of 3 interlaced monobanders, in a lightweight and durable construction made of fiberglass and wire. All parts are made of high quality materials resistant to weather, UV rays and corrosion.
This antenna is recommended for temporary use during field days, expeditions, contests, travel and installation in special locations for a limited period of time. For permanent installation, we recommend the more robust HD (heavy duty) version.
Putting together this antenna kit will be a fun and educational project. It contains all the necessary parts to make a 100% complete antenna (exactly as described in the construction guide - including some prefabricated parts). Nothing beats the satisfaction of cracking pile-ups with an antenna you built with your own hands!

Welcome aboard. Over 1000 Spiderbeams are already installed worldwide.
Get yours today and become a happy Spiderbeam fan!

Further informations to be found here: Dokumente, Tipps & Bauanleitungen


For setup, tips and modifications besides the manual please also visit the tutorial website of our senior consultant and experienced HAM Rick DJ0IP here .
He collects tips for beginners and advanced users and great instructions for special versions and special requirements.
