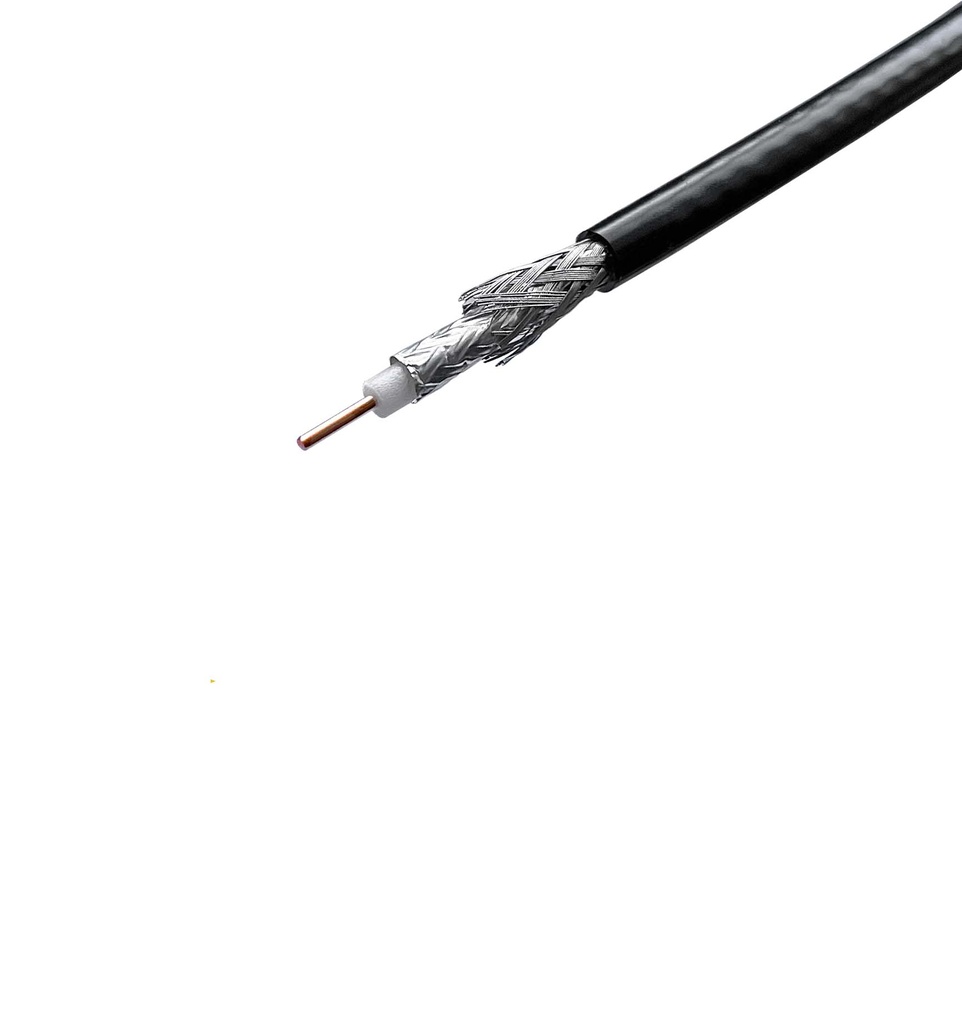

Coax cable Airborne 5mm

An ultra-lightweight, low-loss 5mm coax with lower attenuation and only about half the weight of RG-58 C/U.  This coax is ideal for portable operations where the user requires a lightweight coax handling much higher power than 2 to 3mm coax.
Airborne 5 is perfect for use with our Spiderbeam Yagi antennas on aluminium masts, or with our Aerial-51 807-L/807-HD antennas on fiberglass poles.

•    This coax with its PE jacket is suitable for burial underground.
•    This coax requires special coax connectors, as its aluminium magnesium shield cannot be soldered to.

Specifications:
Impedance: 50 Ohm
Inner Conductor:  99.9% pure bare solid copper wire , Ø 1.13 mm
Dielectric:  Polyethylene (PE), Ø 3mm
Jacket:  UV-shielded Polyethylene, Ø 5mm
Inner Screen: polyester and aluminium foil with 100% screening
Outer Screen:  96 strands of aluminium magnesium wire, 84% screening
Minimum Bend Radius: single bend (choke): 25mm / up to 15 bends: 50mm
Capacitance (+/- 2 pF):  76 pF/m
Velocity Factor: 0.85
Weight/100 meter:  2.3 kg
Temperature Range: -45° to 70° C
