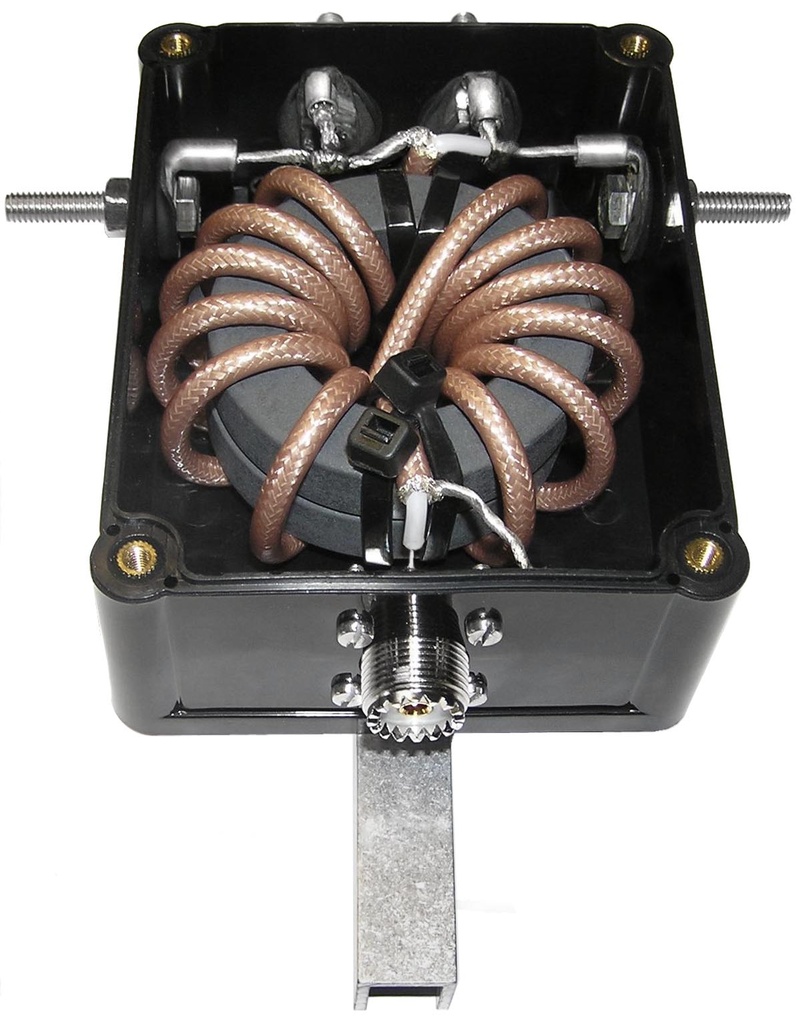

Spiderbeam Dual Core Balun 1:1 (fully assembled)

    108.41 € net price (outside EU) 108.41 EUR

    129.01 € inc. German VAT plus shipping

    108.41 €

    This combination does not exist.

    Add to Cart

    A902

    Weight: 0.65 kg

    High quality W1JR type coax choke 1:1 ratio, 3500W balun for 3.5 - 28 MHz


    This is basically the same balun as used in our Spiderbeam Yagi antennas: This model has just 2x FT-240/61 cores for higher power, instead of 1 core (standard balun). This W1JR type coax choke-balun has extremely good balancing properties on 10 - 28 MHz and quite good balancing properties on 3.5 - 7 MHz. It is very well suited as a  high-power balun for all 50 Ohm antennas in this frequency range. It uses high quality components (Fair-Rite ferrite toroids, Teflon-insulated coax cable and a rugged UV-resistant plastic enclosure).

    Note: all parts for assembling a single core standard balun are included with all of our Spiderbeam Yagi antenna kits.

    We are offering this high-power version with 2 cores as a quality add-on for our Spiderbeam Yagi antennas, or as a stand-alone product for any other 50 Ohm antenna you may build.

    Weight: 650g (23 oz.)
    Maximum power:
    For antennas with an SWR < 3:1 -  3500W
    For antennas with an SWR > 3:1 -  1500W
