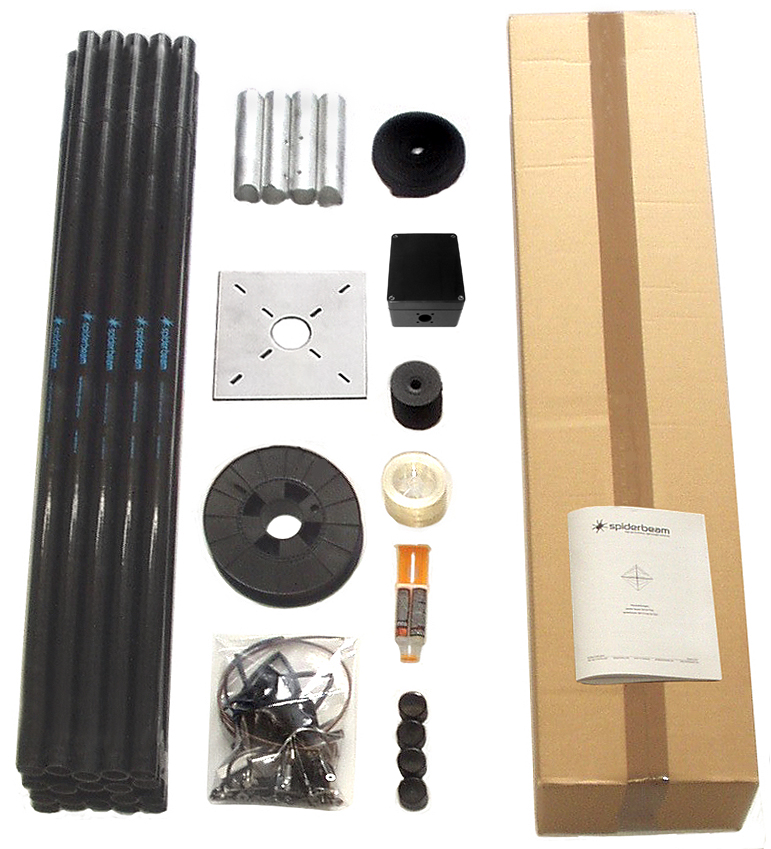

Spiderbeam 20-17-15-12-10m Yagi kit (HEAVY DUTY)

    452.94 € net price (outside EU) 452.94 EUR

    539.00 € inc. German VAT plus shipping

    452.94 €

    This combination does not exist.

    Add to Cart


    Weight: 11.90 kg

    HEAVY DUTY 5-band antenna kit
    Specially reinforced yagi for permanent installation.

    Bands: 20m / 17m / 15m / 12m / 10m
    Nr. of Elements: 3 / 2 / 3 / 2 / 4
    Forward Gain at 10m height [dBi]: 11.7 / 10.5 / 12.3 / 10.5 / 12.6
    Front/Back ratio [dB]: 15-20 / 20-25 / 20-25 / 10-12 / 18-22
    SWR: < 1.5 / < 1.5 / < 2 / < 1.5 / < 2
    Max. Power: 2000 W / balun is included
    Impedance: 50 Ohms / single feedline
    Boom length: 10m (33 ft)
    Turning Radius: 5m (16 ft)
    Wind load area: 0.35 sq-m (3.8 sq-ft)
    Weight: 11.5kg (25 lbs)
    Transport Size: 120x27x18cm (47x11x7 inch)

    The Heavy Duty Spiderbeam is a specially reinforced version, optimized for permanent installation at home (see chapter 4 of our construction guide PDF). Doubling the wall thickness of the aluminium and fiberglass parts added a lot of extra ruggedness to the design, making it strong enough to permanently survive severe weather conditions for many years. All parts are made of high quality materials resistant to weather, UV rays and corrosion.

    The well proven electrical concept remains unchanged: 5 monobanders are interlaced on one boom, forming a highly efficient 5-band yagi. At 11.5kg this full size beam is still a lightweight, compared to many other permanent yagis in the same performance class.

    Putting together this antenna kit will be a fun and educational project. It contains all the necessary parts to make a 100% complete antenna, as described in the construction guide. Nothing beats the satisfaction of cracking pile-ups with an antenna you built with your own hands!

    Welcome aboard. Over 1000 Spiderbeams are already installed worldwide.
    Get yours today and become a happy Spiderbeam fan!

    Further informations to be found here: Documents, Tips and Constuction Guides

    For setup, tips and modifications besides the manual please also visit the tutorial website of our senior consultant and experienced HAM Rick DJ0IP here
    He collects tips for beginners and advanced users and great instructions for special versions and special requirements.
