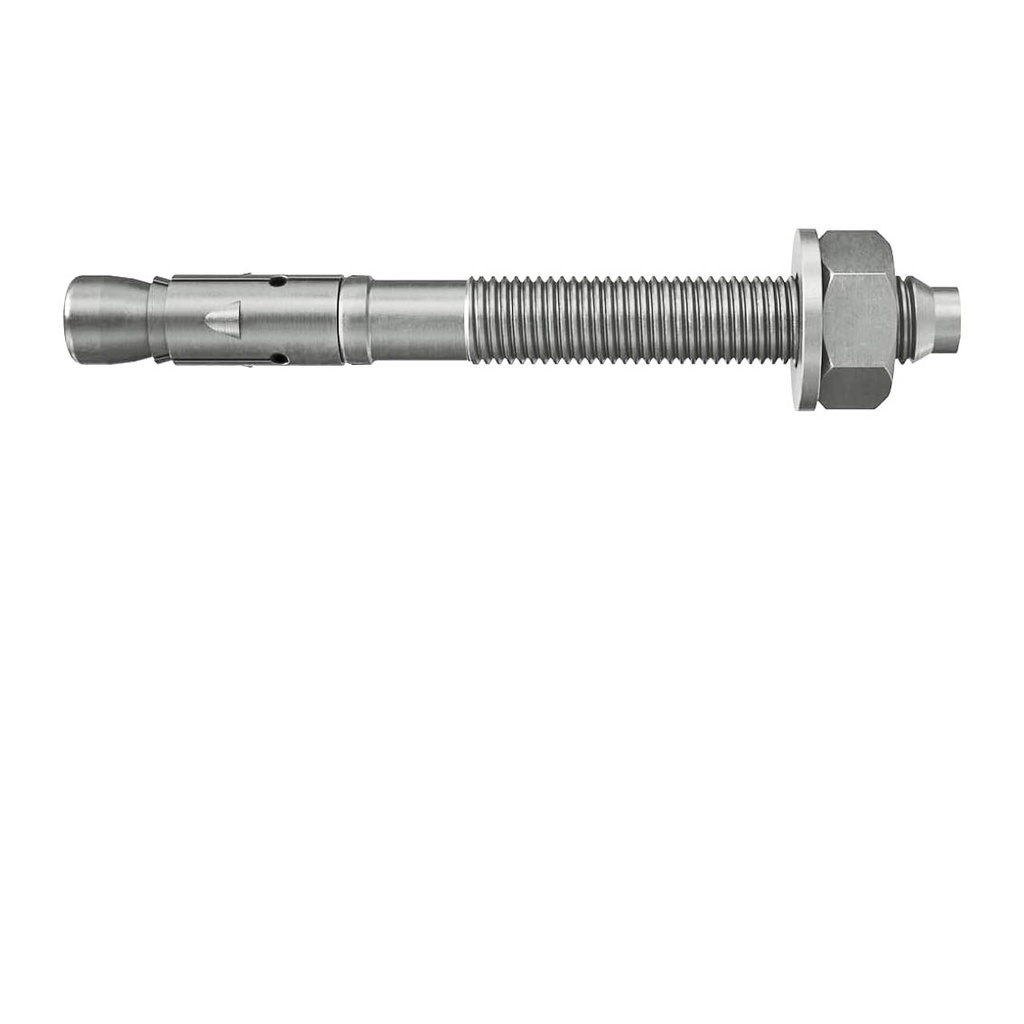

The Fischer FAZ II A4 bolt anchor is the steel anchor for secure fastening to concrete walls.
Fits to (and is part of) our wall bracket set for aluminum poles.
The V2A nut and washer are included in the scope of delivery.
Nominal drill hole diameter: 10mm
Min. drill hole depth for through-hole mounting: 150mm
Min. anchoring depth: 60mm
Dowel length: 155mm
Max. Max. usable length: 70mm
Thread (Ø x length): M10x113
Metric tool size: 17
Made of stainless steel for outdoor and wet room applications.
When the hexagon nut is tightened, the conical bolt is pulled into the expanding clip and clamps it against the wall of the drill hole.
Characteristics:
- Even load distribution for high permissible loads.
- Safe re-expansion even in cracked concrete.
- Easy to install, only a few turns required for the torque.
