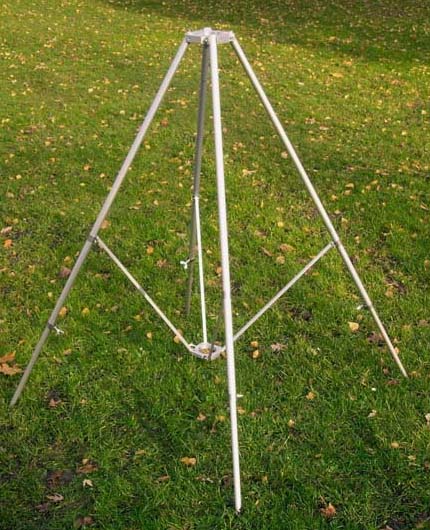

Aluminium tripod S with 1.2m legs

Aluminium tripod S (quadpod) with 1,2m legs.

This tripod fits together very well with our 10m (P & HD) and 12.5m aluminium telescopic masts.

Technical data:
Material: high quality anodized aluminium
Weight: 4kg
Transportation length: 95cm
Center hole mount diameter: 74mm with locking screw
Number of legs: 4 leg length adjusting range: 1 - 1.20m
The height above the floor with the legs fully unfolded and the cross struts in a horizontal position:
*Built-up height at the upper mount (distance between ground and the upper side of the mount)
With fully extended telescopic legs: 92cm
With fully retracted telescopic legs: 71cm
*Built-up height at the lower mount (distance between ground and the lower side / space for a rotor)
With fully extended telescopic legs: 42cm
With fully retracted telescopic legs: 22cm

It is a great help especially for a single person putting up the mast and Spiderbeam antenna alone. (For more details about Spiderbeam & telescopic mast installation see the Installation hints).
All 4 legs are individually adjustable to level out uneven terrain.

The mast can be rotated inside the tripod. You can rotate the mast by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the Spiderbeam.

The tripod can be folded away to a small packaging length of 95cm.

*All height specifications are average values, as the adjustment options and folding angle on the hinges result in a certain variance of approx. +/- 1 cm.
