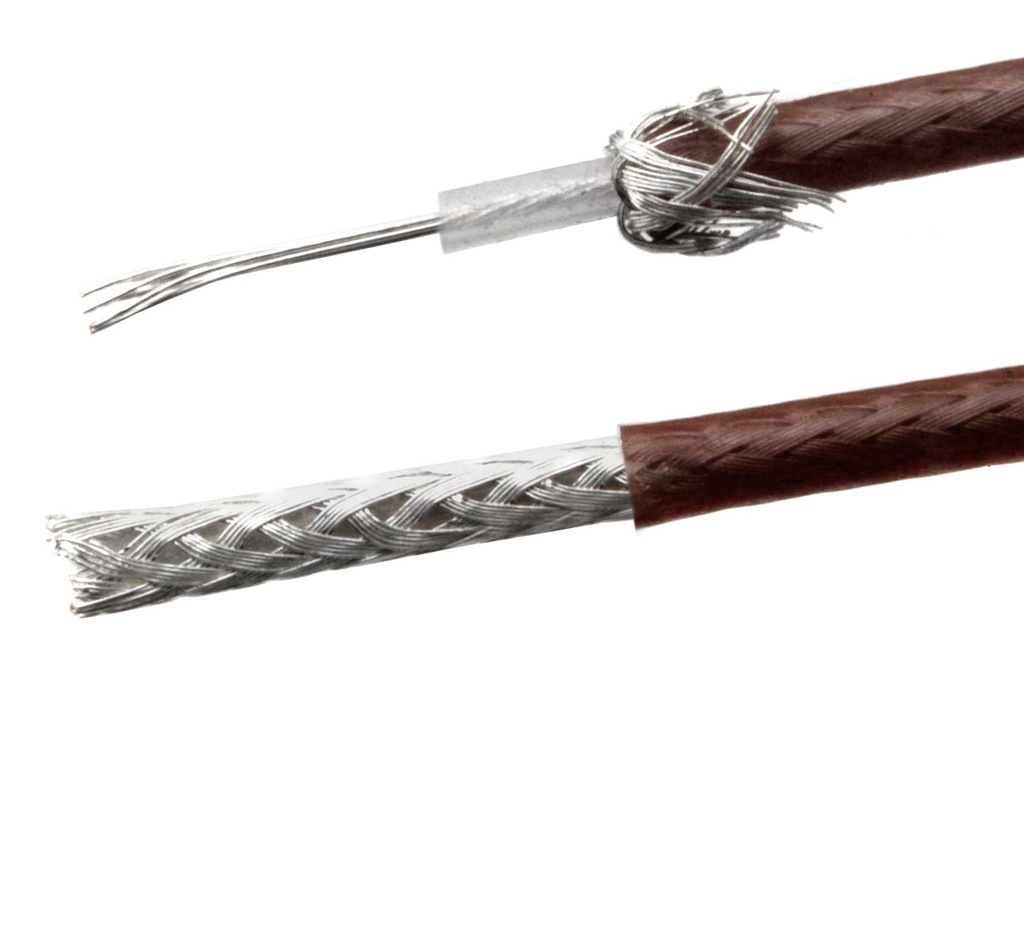

RG 316 U Mini Coaxcabel 50 Ohm (Teflon insulated)
AE80711
Weight: 0.02
kg
High quality mini KOAX cable
A lightweight, Teflon-insulated coax, especially for use in applications where high heat resistance is required, such as baluns.
We use this coax in our Aerial-51 807-xx antennas.
Specifications:
Impedance: 50Ohm
Inner Conductor: stranded, silver-plated steel wire , 7 x 0,18 mm Ø = 0,54
Dielectric: Ø 1,56 mm PTFE (Teflon) ±0,1
Jacket: FEP (PTFE), Ø 2.49mm (+/- 0.1mm)
Shield: silver-plated copper-mesh wire
Minimum Bend Radius: 15 mm
Capacitance: 94 pF/m
Velocity Factor: 0.7
Weight/meter: 18.1 g
Temperature Range: -50° to 200° C
