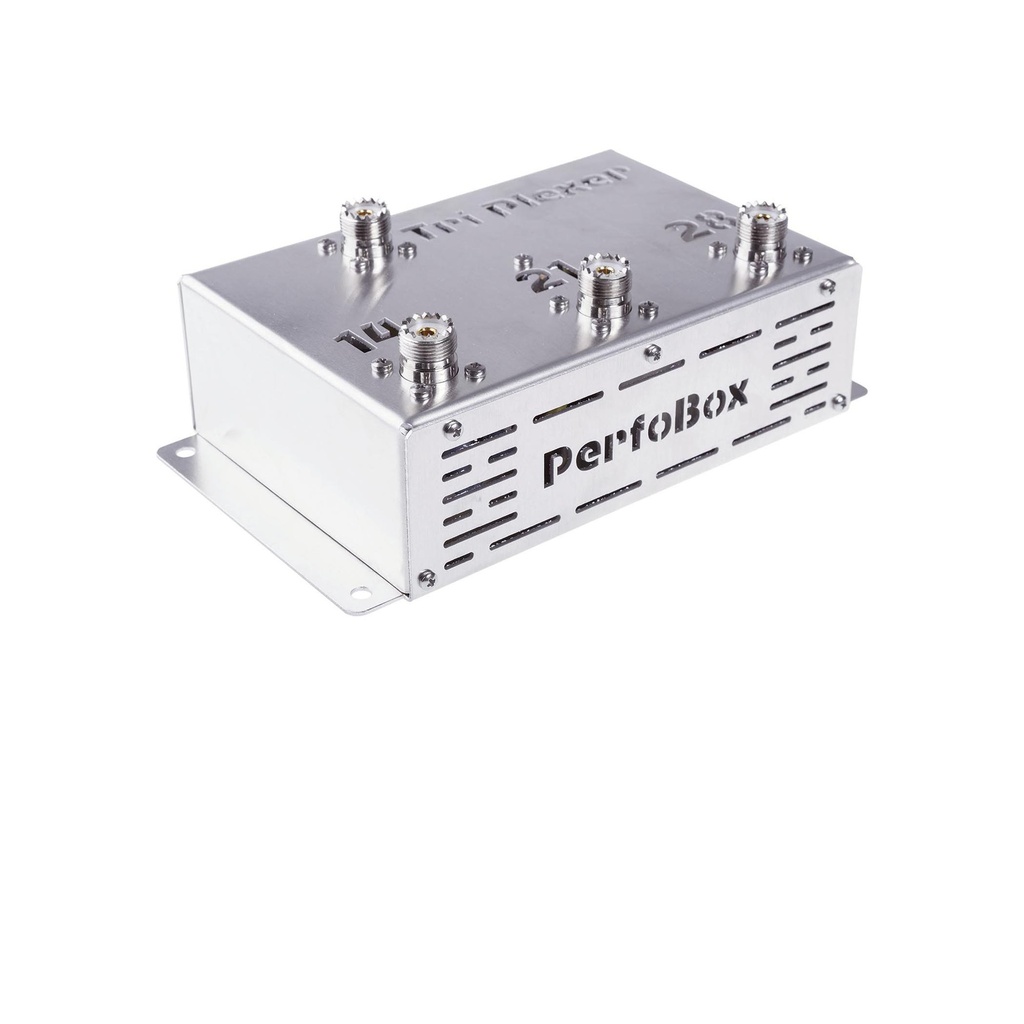

LBS (Low Band Systems) Triplexer Perfo Box-200 for 14-21-28 MHz

Remaining stock - As good as new from acquired inventory.
Manufacturer warranty only, no service, no consultation.
We do not carry radio transceivers and therefore do not offer any related services.

This product is as good as new / unused at a bargain price!

Low Band Systems (LBS) Triplexer is a high-quality RF crossover that enables the simultaneous operation of multiple radios on a single antenna.
It offers high performance for bands such as 14-21-28 MHz with low insertion loss (With Low Band Systems PerfoBox TriPlexer, multiple transceivers can share a single tri-bander antenna for multi-operator contest operation, SO2R operation, field days or any other setup that requires sharing of a 14-21-28 MHz multi-band antenna between up to three transceivers.

Additional band pass filter are recommended for each input to isolate and protect each transceiver and reduce interference.
(for example the PerfoBox Band Pass Filters available from LBS).


Impedance: 50 Ohm
Maximum ICAS power per band port: 200 W
Maximum ICAS power at antenna port: 400 W
VSWR: ≤1,2 : 1
Connector: SO-239 (UHF female)
Dimensions (L x W x H) mm/inches: 200 x 125 x 70 mm / 7,9” х 4,9” х 2,8”
Net weight, kg/lbs.: ≤0,65 kg / 1,4 lbs
