4 hole guy plate set for 15m alu-mast


35.29 € net price (outside EU) 35.29 EUR

42.00 € inc. German VAT plus shipping

35.29 €

This combination does not exist.

Weight: 0.41 kg

Contains plates and bushings for 30mm, 40mm and 50mm segments.
Whole mast rotatable inside guy plates.

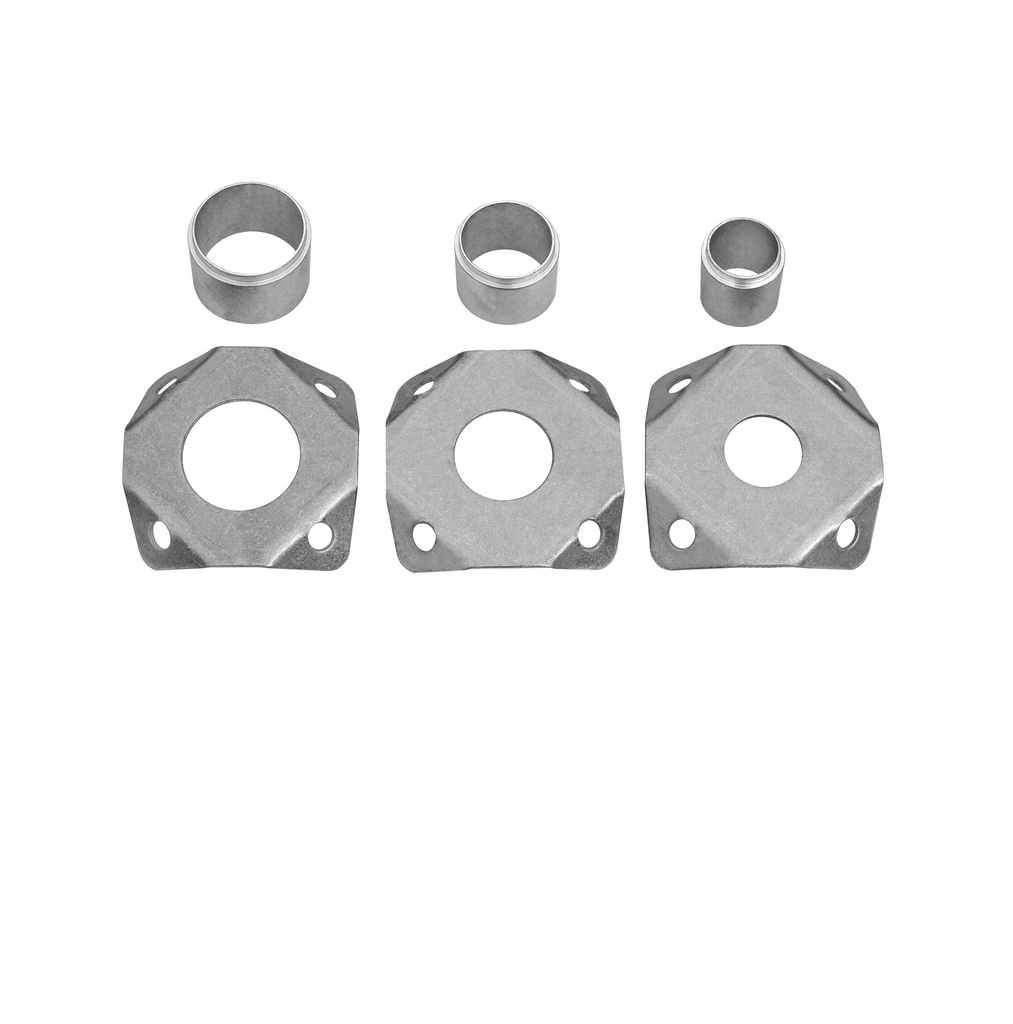

Complete set:
Contains 3 guy plates for guying mast at three levels.

Diameter of top plate & bushing: 30mm
Diameter of center plate & bushing: 40mm
Diameter of bottom plate & bushing: 50mm

Guy lines can be affixed in 4 directions (90°). The whole mast can be rotated inside the guy plates, i.e. the antenna can be turned by hand from the ground. You can also mount a rotator at the bottom of the mast (For example, a G-450, G-650, Hygain CD-45 or Ham IV will easily turn the whole mast including the Spiderbeam).
