4 hole guy plate set for 14.5m HD alu-mast

https://spiderbeam.odoo.com/web/image/product.template/1968/image_1920?unique=1c1dab0

35.29 € net price (outside EU) 35.29 EUR

42.00 € inc. German VAT plus shipping

35.29 €

This combination does not exist.

AS4050604
Weight: 0.42 kg

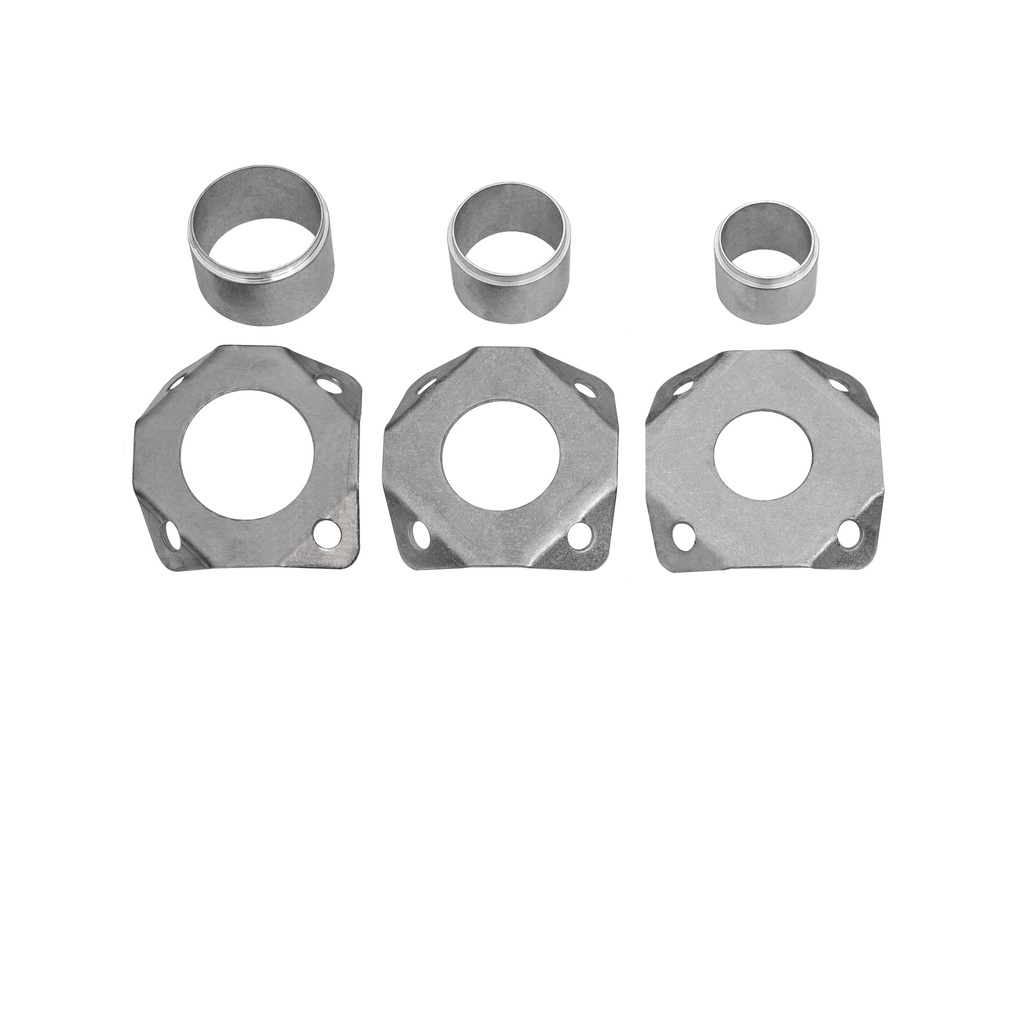

Contains plates and bushings for 40mm, 50mm and 60mm segments.
Whole mast rotatable inside guy plates.


Complete set:
Contains 3 guy plates for guying mast at three levels.

Diameter of top plate & bushing: 40mm
Diameter of center plate & bushing: 50mm
Diameter of bottom plate & bushing: 60mm

Guy lines can be affixed in 4 directions (90°). The whole mast can be rotated inside the guy plates, i.e. the antenna can be turned by hand from the ground. You can also mount a rotator at the bottom of the mast (For example, a G-450, G-650, Hygain CD-45 or Ham IV will easily turn the whole mast including the Spiderbeam).
