3 hole guy plate set for 14.5m HD alu-mast

https://shop.spiderbeam.com/web/image/product.template/1963/image_1920?unique=530c1db

32.77 € net price (outside EU) 32.77 EUR

39.00 € inc. German VAT plus shipping

32.77 €

This combination does not exist.

AS4050603
Weight: 0.38 kg

Contains plates and bushings for 40mm, 50mm and 60mm segments.
Mast stays rotatable within the guying system.

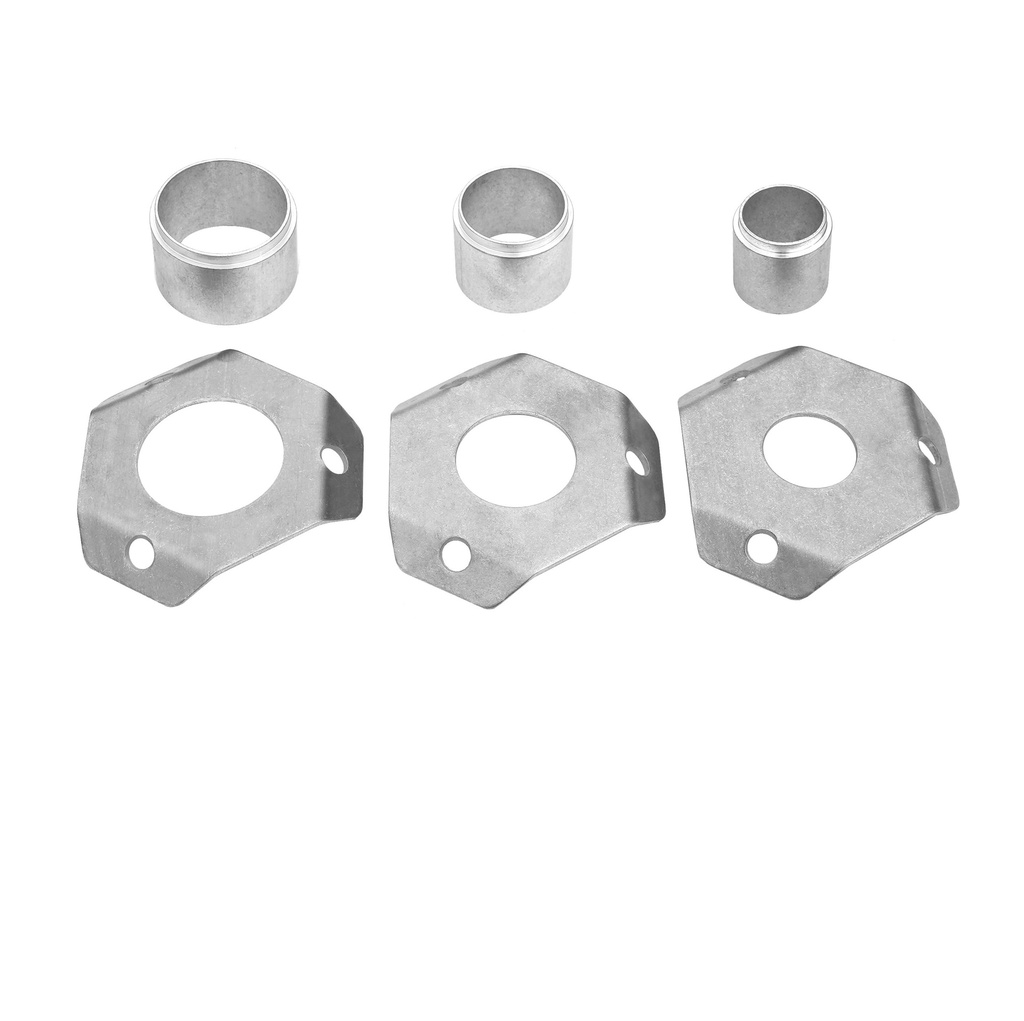

Complete set:
Contains 3 guy plates for guying mast at three levels.

Diameter of top plate & bushing: 40mm
Diameter of center plate & bushing: 50mm
Diameter of bottom plate & bushing: 60mm

Guy lines can be affixed in 3 directions (120°). The whole mast can be rotated inside the guy plates, i.e. the antenna can be turned by hand from the ground. You can also mount a rotator at the bottom of the mast (For example, a Yaesu G-450, G-650,Ham IV or Hygain CD-45 will easily turn the whole mast including the Spiderbeam).
