4 hole guy plate set for 10m or 12.5m alu-mast
AS30454
Weight: 0.24
kg

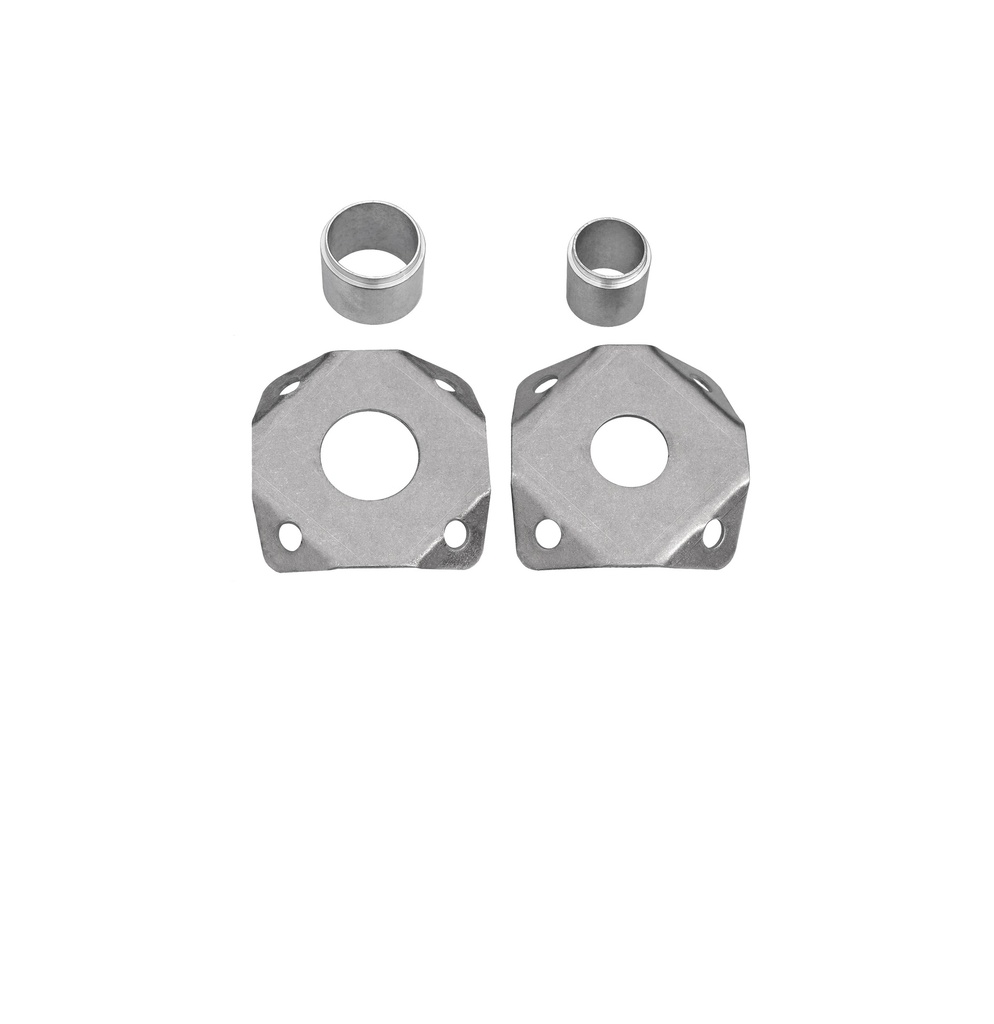

Contains plates and bushings for 30mm and 45mm segments.
Whole mast rotatable inside guy plates.
Complete set:
Contains 2 guy plates for guying mast at two levels.
(suitable for 10m or 12.5m mast)
Diameter of top plate & bushing: 30mm
Diameter of bottom plate & bushing: 45mm
Guy lines can be affixed in 4 directions (90°). The whole mast can be rotated inside the guy plates, i.e. the antenna can be turned by hand from the ground. You can also mount a rotator at the bottom of the mast (For example, a Yaesu G-450, G-650, Hygain CD-45 or Ham IV will easily turn the whole mast including the Spiderbeam).
Attention: These guying sets are suitable only for aluminium masts, but not usable with Fiberglass poles.
