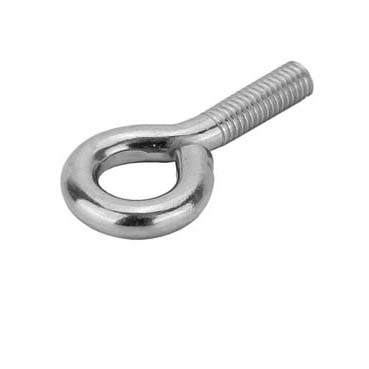

Ringbolt / Eyebolt, stainless steel, (M6 x 20mm)
for attaching applications to the threaded plug.
(on the 10th segment of the 12m or 12th segment of the 14m HD fiberglass pole)
If you use our threaded plug at the top of the 10th segment of the 12m HD fiberglass pole or at the 12th segment of the 14m HD fiberglass pole, this eyebolt fits into the thread.
It is used as a "hanger" for small antennas or other applications.
As the fiberglass masts here have a tube diameter of over 17mm, the mast is so rigid and stable that it can also support small antenna housings (up to 1kg in weight) at the top of the pole without strong bending.
Technical data:
M6 threaded eyelets (type 48) made of A2 stainless steel.
Thread length 20 mm (metric ISO thread/approx. 4.9 mm diameter)
Ring inner diameter 10 mm (slightly open eyelet)
Total length: approx. 45 mm
