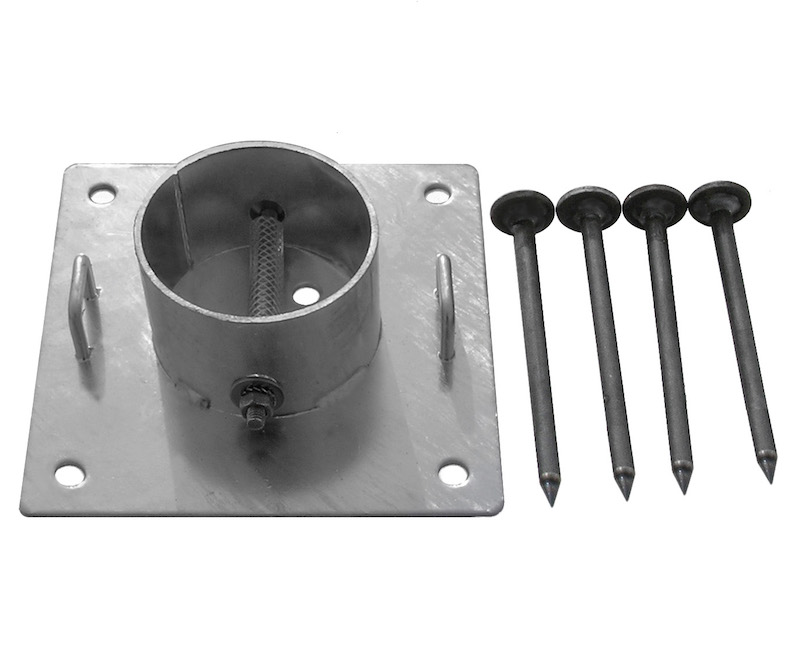

Baseplate kit of galvanized steel (incl. accessories)

Galvanized steel Baseplate to fix our Alu-masts on the ground.

With this base plate Spiderbeam aluminum masts can be fixed on level ground.
The holes in the tube (mounting) allow the attachment of the bottom of the mast to the base plate by using a screw bolt (enclosed here) through the located cross hole at the foot of each of our masts.
At the bottom of the mounting are holes for drainage of water.
Through the 4 holes at the corners of the base plate you can fix your mast to the ground with the enclosed 4 ground nails.
In case of stone ground you may also have the possibility to fix permanently to the ground with drill holes in the ground and for example the FISCHER anchor screws (available in our shop).

Scope of delivery:
1 Baseplate
1 stainless steel bolt, washer and nut
1 Rubber spacers
4 Ground stakes each 150mm lang
(incl. 4 ground stakes 150mm long)

Dimensions: 200x200x66mm (length x width x height)
inner diameter for the mast mounting: approximately 95mm
Total weight of goods: approximately 2kg
