RG 316 U Mini Coaxcabel 50 Ohm (Teflon insulated)

Price in €/meter

    2.51 € net price (outside EU) 2.5100000000000002 EUR

    2.99 € inc. German VAT plus shipping

    2.51 €

    This combination does not exist.

    Add to Cart


    Weight: 0.02 kg

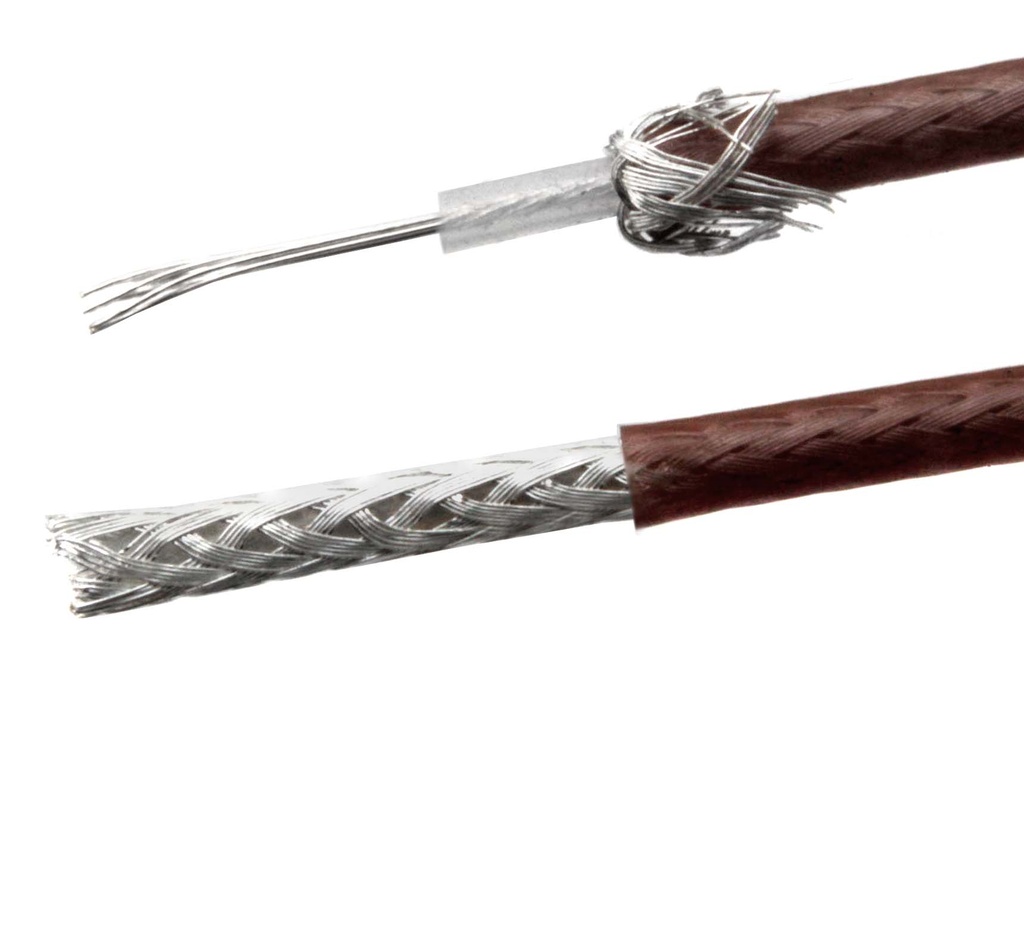

    High quality mini KOAX cable

    A lightweight, Teflon-insulated coax, especially for use in applications where high heat resistance is required, such as baluns.
    We use this coax in our Aerial-51 807-xx antennas.

    Impedance: 50Ohm
    Inner Conductor: stranded, silver-plated steel wire , 7 x 0,18 mm Ø = 0,54
    Dielectric: Ø 1,56 mm PTFE (Teflon) ±0,1
    Jacket:  FEP (PTFE), Ø 2.49mm (+/- 0.1mm)
    Shield: silver-plated copper-mesh wire
    Minimum Bend Radius:  15 mm
    Capacitance: 94 pF/m
    Velocity Factor: 0.7
    Weight/meter: 18.1 g
    Temperature Range: -50° to 200° C
