Bands: 20m / 17m / 15m / 12m / 10m
Nr. of Elements: 3 / 2 / 3 / 2/ 4
Forward Gain at 10m height [dBi]: 11.7 / 10.5 / 12.3 / 10.5 / 12.6
Front/Back ratio [dB]: 15-20 / 20-25 / 20-25 / 10-12 / 18-22
SWR: < 1.5 / < 1.5 / < 2 / < 1.5 / < 2
Max. Power: 2000 W PEP / balun is included
Impedance: 50 Ohms / single feedline
Boom length: 10m (33 ft)
Turning Radius: 5m (16 ft)
Wind load area: 0.35 sq-m (3.8 sq-ft)
Weight: 7.5kg (16 lbs)
Transport Size: 120x27x18cm (47x11x7 inch)

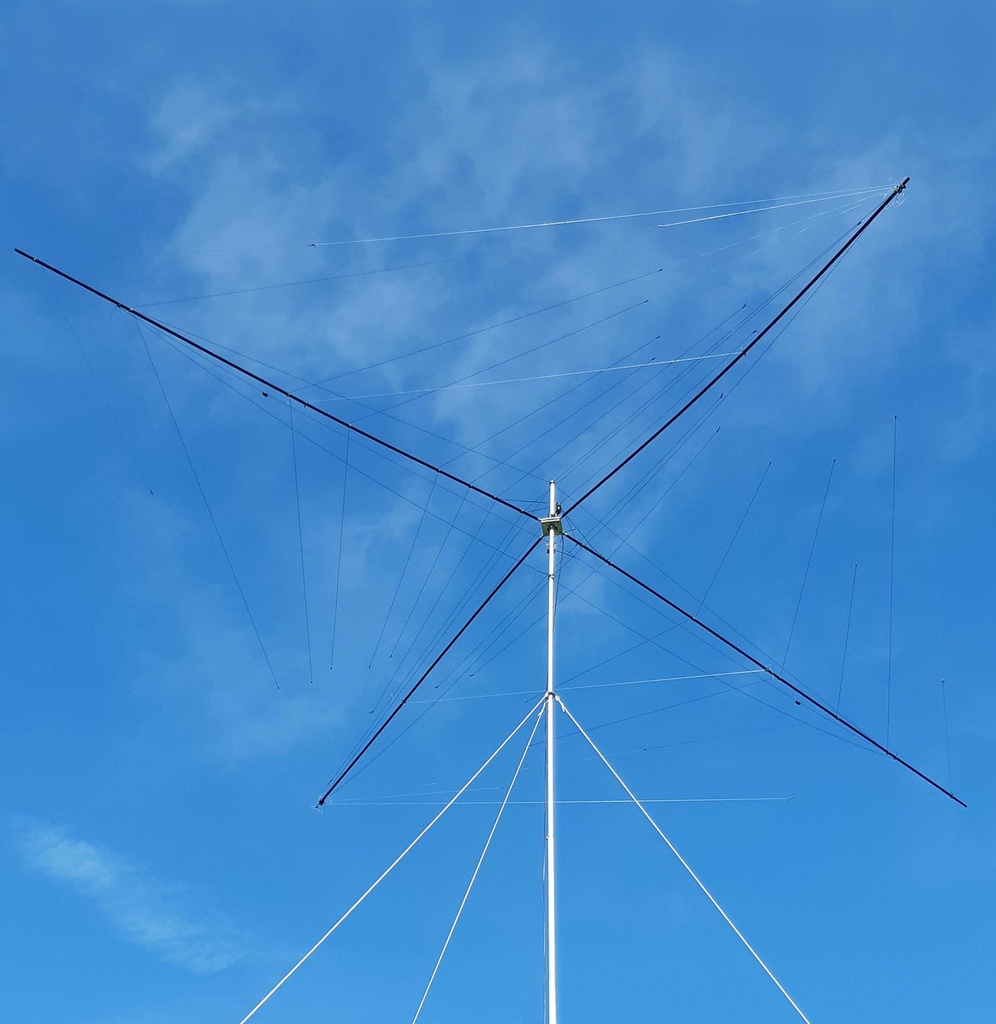

The portable Spiderbeam is a DXpeditioner's dream antenna. It is a fullsize 5-band yagi, consisting of 5 interlaced
monobanders, in a lightweight and durable construction made of fiberglass and wire. All parts are made of high quality
materials resistant to weather, UV rays and corrosion.
This antenna
is recommended for temporary use during field days, expeditions,
contests, travel and installation in special locations for a limited
period of time. For permanent installation, we recommend the more robust
HD (heavy duty) version.
ATTENTION: this is the partially prefabricated antenna. The wire
set was measured, cut and pre-assembled by hand to be able to attach it
to the spreaders. You will receive all components and the complete wire
set ready wound on a plastic spool. This saves you the hours of
preparation and you can devote yourself entirely to the construction of
the antenna on site.
Info: This pre-assembly means a few hours of pure manual work.
The pre-assembled wire set can therefore take 1 week or longer, depending on demand and capacity utilization in production.
(please enquire before/when ordering)
Welcome aboard. Over 1000 Spiderbeams are already installed worldwide.
Get yours today and become a happy Spiderbeam fan!
Further informations to be found here: Documents, Tips and Construction Guides
Für Aufbau, Tipps und Modifikationen neben dem Handbuch bitte auch die Tutorial Internetseite von unserem Senior Berater und erfahrenem HAM Rick DJ0IP hier
He
collects tips for beginners and advanced users and great
instructions for special versions and special requirements.
